Services

Library Management

	Creation of Schematic parts using OrCAD Capture CIS as per IPC / IEEE stds.

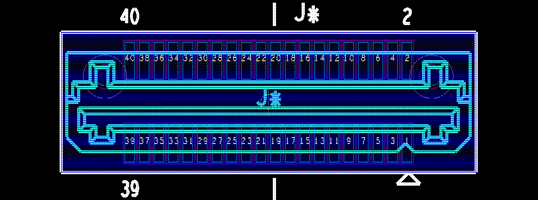

	Creation of Footprint creation as per IPC standards.
	Dedicated team for library part development
	Proven process and verification process in place

Schematics Capture

	Schematic captures from hand drawn using OrCAD Capture CIS
	Dedicated team for capture and verification
	Generation of Netlist and Bill of Materials
	Generation of required documents

Board Layout

	Board designs – Analog, Digital, High speed & Mixed signal based.
	Design of Complex Rigid, Metal core, Flex and Rigid flex boards
	Fine Pith BGA’s (0.4mm and 0.5mm Pitch) QFP’s, QFN’s and PGA packages
	Design of Multilayer cards with HDI, Blind, buried and Microvias.
	Design of boards with 16+ layers
	Design of boards with layer stack up Micro strip and Strip line for controlled impedance
	Design of boards to meet the DFM, DFA, DFT and RoHS compliance
	Handover of Engineering Data to FAB & Assembly houses.

SI –Analysis ( Outsourced )

	Pre- and Post SI Analysis
	Simulation carried out using IBIS models
	High-speed Design Foundations Crosstalk/Differential
	Generation of diagrams, graphs and reports

Manufacturing & Assembly ( Outsourced )

	Fabrication of PCBs single, double and multilayers upto 22 Layers
	Boards with minimum hole size of 10 mils, Trace width 4mils / 4mils
	Fabrication of boards with impedance control and HDI micro vias
	Board thickness – 0.8mm to 3.2mm with Metal cores
	Board finishes – HASL and Electroless Ni/Au
	Assembly of fine pitch components BGA's, QFN, QFPs and discretes upto 0201 package.
	Pick and place option for High volume boards
	Proven inspection and cleaning process in place

TOOLS:

	OrCAD capture CIS Ver 10.5
	Cadence Allegro Ver 16.5
	GC preview – Gerber viewer
	Valor – Odb++ Viewer

Business Model:

	Quoting will be done on project / man hour basis
	Looking at Long term business and retainer ship basis.
